Introduction

System Architecture

The landing page consists of these parts:

• Reverse Proxy (Nginx): Acts as the entry point. It handles SSL termination and routes traffic to the Vue.js static files or the Spring Boot API.
• Frontend (Vue.js): A Single Page Application (SPA) that handles the UI and user interactions.
• Backend (Spring Boot): The RESTful API that handles business logic, database transactions, and security checks.
• Database (PostgreSQL): Persistent storage for news, team members, and configuration.
• Containerization (Docker): Everything is wrapped in Docker containers

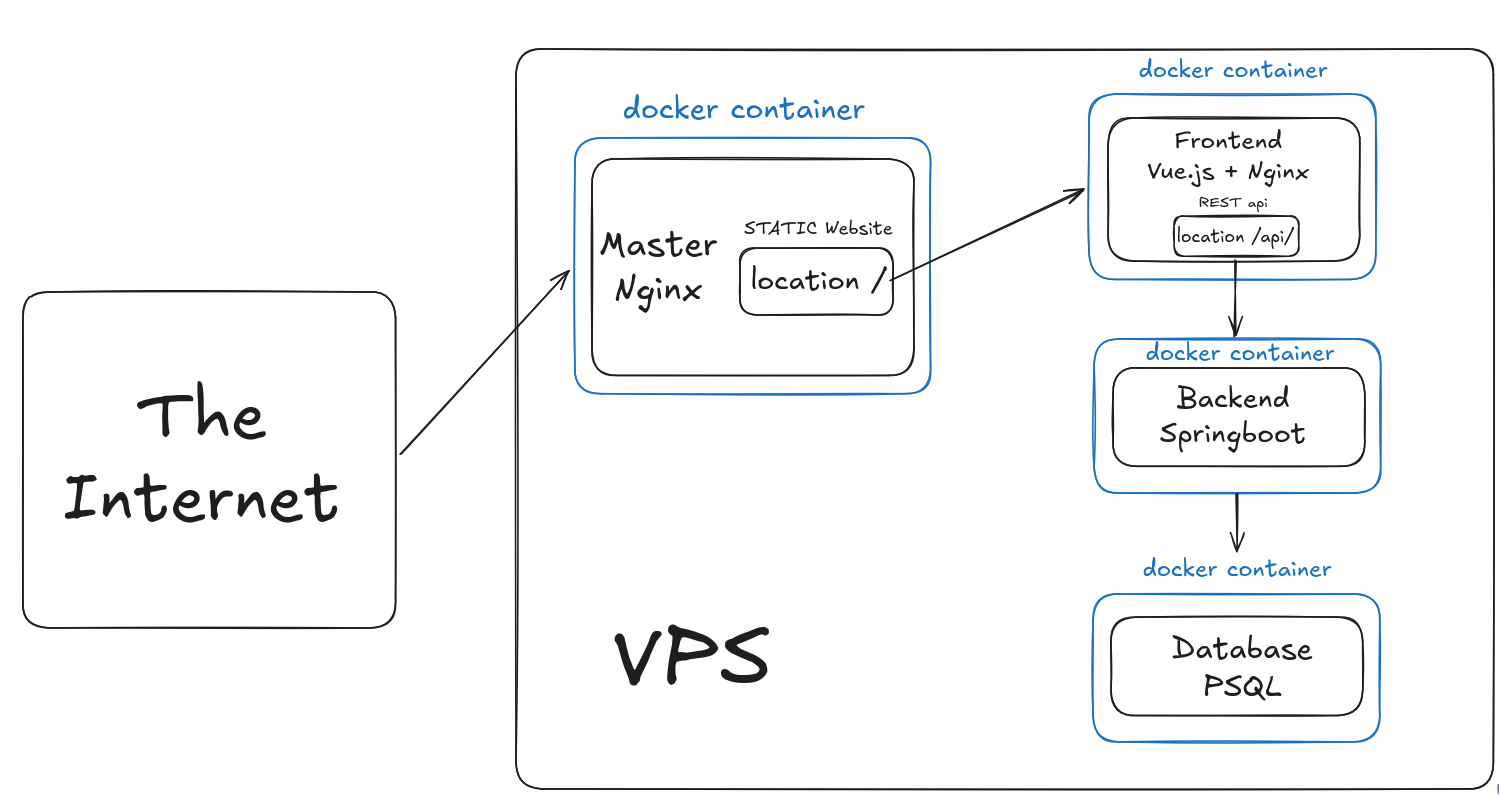

Which is easier to understand with following diagram:

Admin Dashboard

Our system implements a two-tier auth system to log in.

1. The Super User: One hard-coded or environment-variable-based account used for initial setup or emergency access.
2. Google OAuth 2.0:
   • The Whitelist: Access isn't open to any Google account. Only emails ending with @roboteamtwente.nl are permitted.
   • Logic: When a user logs in, the backend checks if the returned Google email exists in the authorized list. If it’s not there, the Spring Boot Security filter returns a 403 Forbidden.

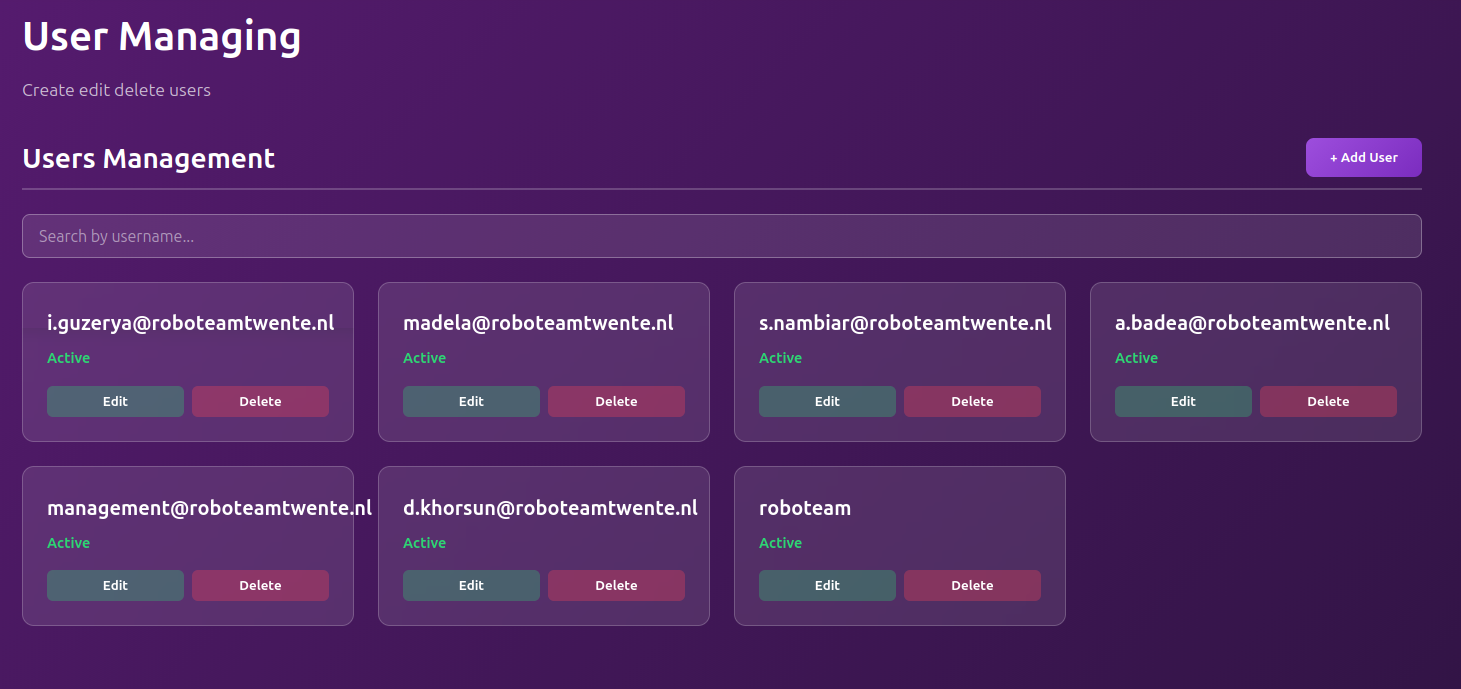

*Adding new users to authorized list: while everyone is technically allowed to login if they are have a @roboteamtwente.nl email, you still have to add them to website's whitelist. It is done in "User Managing" tab on admin's dashboard. It is possible to have a user listed, though deactivated, for book keeping reasons.

Admin Panel & Content Management

The website isn't just a static landing page; it’s a dynamic CMS. Almost all pages hold content that you are able to edit and manage through the admin panel.
