Automatic control

Overview

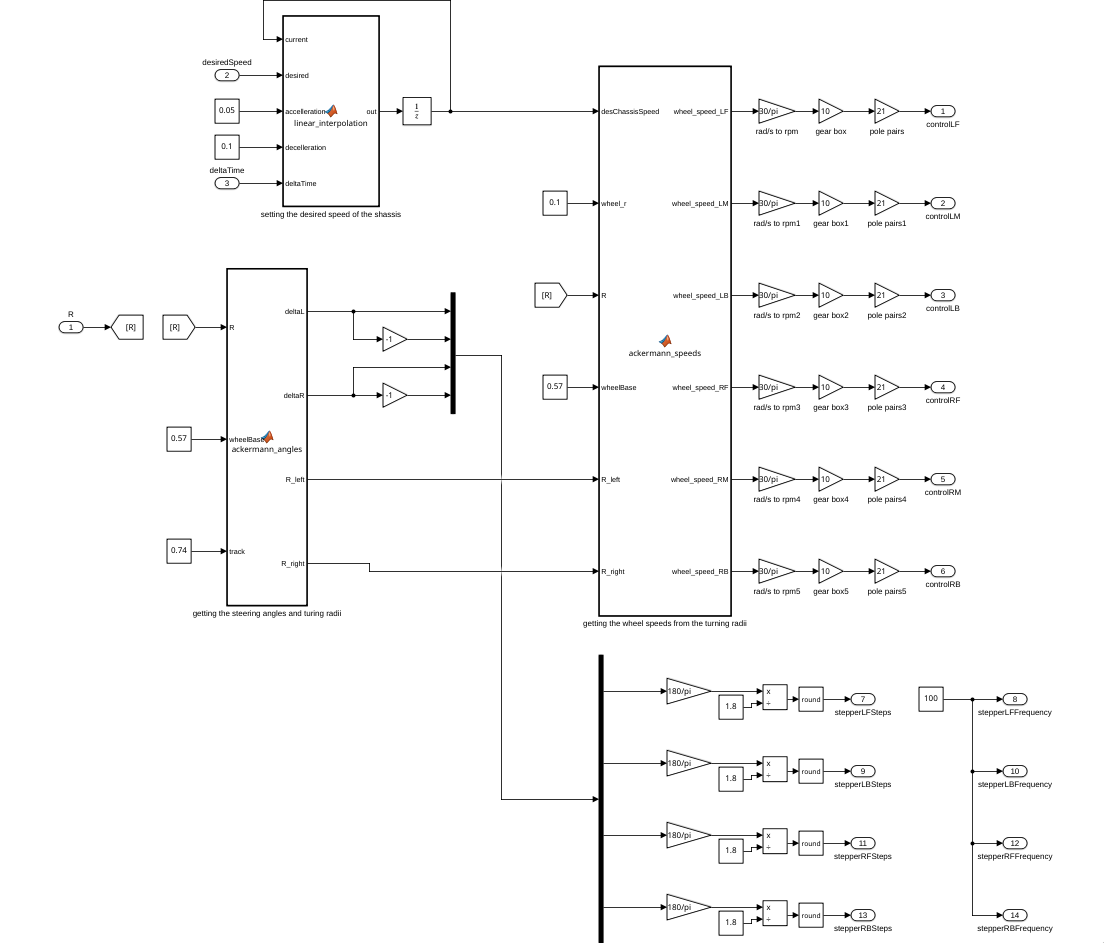

In general, the job of the control system is to turn high level instructions from the software system, and turn them into instructions for the hardware. This is done by having a distance to a goal, a turning radius, and a deltaTime as an input, and turning those into control signals for the motors:

This is done in several steps.

Slow acceleration and deceleration

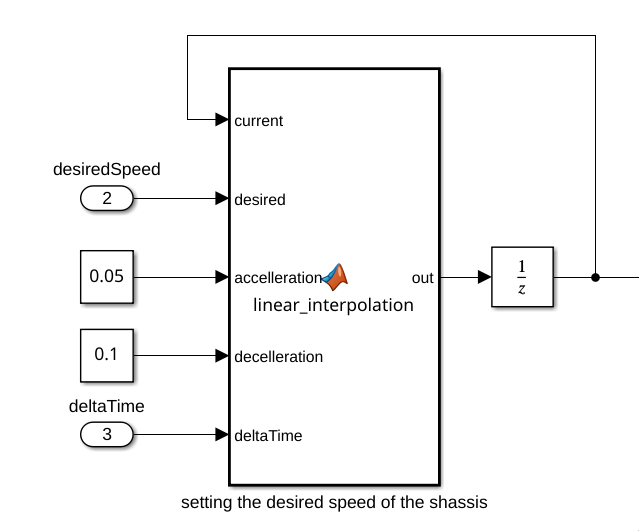

To make sure that the chassis speed accelerates and decelerates consistently, a linear interpolation function is used on the input desired speed.

The function simply works like this:

function out = linear_interpolation(current, desired, accelleration, decelleration, deltaTime)
%accellerating slower than decellerating
if current >= 0
    if current < desired
        current = current + accelleration * deltaTime;
    end
    if current > desired
        current = current - decelleration * deltaTime;
    end
end
%doing the same going backwards
if current <= 0
    if current > desired
        current = current - accelleration * deltaTime;
    end
    if current < desired
        current = current + decelleration * deltaTime;
    end
end
out = current;

Ackermann steering

Getting the necessary angles that the steering motors need to make is done by calculating the Ackermann steering angles that equate from the given turning radius and distance to the goal.

deltaL and deltaR are equal to the angles that the left and right steering motors need to make, which are sent to the steering control.

This function also outputs the turning radius of the right and left wheels of the rover.

The function works like this:

function [deltaL,deltaR,R,wheelBase,R_left,R_right] = ackermann_angles(dist2goal,R,wheelBase,track)
    % Function to compute ackerman steering angles from a bicycle steer angle.
    if R == 0
        alpha = 0;
    else
        alpha = dist2goal/R;
    end

    R = abs(R);

    if alpha < 0
        R_left = (R+track/2);
        R_right = (R-track/2);
        deltaL = atan(wheelBase/(R_left));
        deltaR = atan(wheelBase/(R_right));
    elseif alpha > 0
        R_left = (R-track/2);
        R_right = (R+track/2);
        deltaL = -atan(wheelBase/(R_left));
        deltaR = -atan(wheelBase/(R_right));
    else
        deltaL = 0;
        deltaR = 0;
        R_left = R;
        R_right = R;
    end
end

Ackermann speeds

Using the data coming from the previous function, as well as a wheel radius and motor gear ratio, the speeds needed by the motors are calculated.

Internally the function works like this:

function [wheel_speed_LF,wheel_speed_LM,wheel_speed_LB,wheel_speed_RF,wheel_speed_RM,wheel_speed_RB] = ...
          ackermann_speeds(desChassisSpeed,wheel_r,R,wheelBase,R_left,R_right,gearRatio)
if R > 0
    wheel_speed_LF = (desChassisSpeed/wheel_r)*sqrt(R_left^2 + (wheelBase/2)^2)/R;
    wheel_speed_LM = desChassisSpeed * R_left/(R*wheel_r);
    wheel_speed_LB = (desChassisSpeed/wheel_r)*sqrt(R_left^2 + (wheelBase/2)^2)/R;
    wheel_speed_RF = (desChassisSpeed/wheel_r)*sqrt(R_right^2 + (wheelBase/2)^2)/R;
    wheel_speed_RM = desChassisSpeed * R_right/(R*wheel_r);
    wheel_speed_RB = (desChassisSpeed/wheel_r)*sqrt(R_right^2 + (wheelBase/2)^2)/R;
else
    wheel_speed_LF = desChassisSpeed / wheel_r;
    wheel_speed_LM = desChassisSpeed / wheel_r;
    wheel_speed_LB = desChassisSpeed / wheel_r;
    wheel_speed_RF = desChassisSpeed / wheel_r;
    wheel_speed_RM = desChassisSpeed / wheel_r;
    wheel_speed_RB = desChassisSpeed / wheel_r;
end
    wheel_speed_LF = wheel_speed_LF * gearRatio;
    wheel_speed_LM = wheel_speed_LM * gearRatio;
    wheel_speed_LB = wheel_speed_LB * gearRatio;
    wheel_speed_RF = wheel_speed_RF * gearRatio;
    wheel_speed_RM = wheel_speed_RM * gearRatio;
    wheel_speed_RB = wheel_speed_RB * gearRatio;
end

Control signals

DC motors

After getting all the angles and speeds needed for the rover to make a certain movement, the signals get sent to the motor drivers/controllers in a way that they can use them.

The DC motors are controlled by first sending the desired speed into a linear interpolation function block, which just makes the desired speed change like a linear function, instead of as a stepping function gradually changing the speed to limit the amount of amps being pulled at startup.

function out = linear_interpolation(current, desired, accelleration)
if current < desired
    current = current + accelleration;
end
if current > desired
    current = current - accelleration;
end

out = current;

After this, the linearly changing desired speed will be compared with the actual speed of the motors and the final speed will be controlled using PI controllers which are saturated to stay between -5V and 5V.

Stepper motors

Due to the limitations of Simulink, making the stepper motors move is done using PWM signals coming from the STM32 microcontrollers. The control system only gives the desired position of the stepper motors in terms of steps, and a frequency at which the PWM signal pulses, which in this case is just a constant value.

The sending of the PWM signals is handled by the embedded team.
